Poly Tunnels

Clydeside Trading Society places your order with our supplier who delivers direct to you. All prices exclude VAT. Please use the below charts to determine your poly tunnel needs and work out the cost, including cutting and delivery.

NOTE: As these are made to measure, they are non-refundable, please ensure you have your exact requirements before ordering.

Please contact us if you need help working out the size and cost.

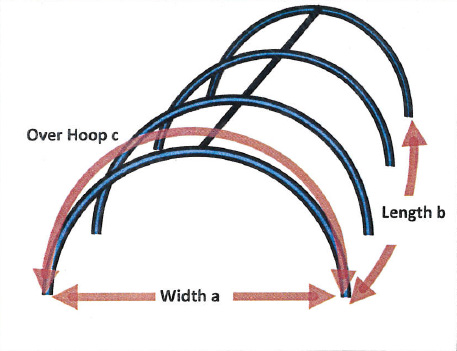

How to calculate a sheet size for a single span tunnel:
  • Determine the width (a) of the tunnel and the length (b)
  • Use the table below to select the correct width of sheet
  • If the table is inconclusive measure the over hoop (c) and add on extra for fixing method. 2m extra for trenching, 1m for timber batten fixing and 0.75m for grip rail
  • To determine length of sheet needed add length (b) to width (a). Add extra if doors need to be recovered
Poly tunnel measurement guide
Tunnel width in Metres 3.1m 3.7m 4.3m 4.9m 5.5m 6.4m 7.3m 8.2m 8.9m 9.2m 10.1m
Tunnel width in Feet 10ft 12ft 14ft 16ft 18ft 21ft 24ft 27ft 29ft 30ft 33ft
Trenched 7.3m 7.3m 9.2m 11.1m 11.1m 11.1m 14m 14m 14m NO NO
Base Rail 7.3m 7.3m 7.3m 9.2m 9..2m 11.1m 14m 14m 14m 14m NO
Mid Rail 7.3m 7.3m 7.3m 7.3m 7.3m 9.2m 11.1m 11.1m 11.1m 14m 14m
Calculating Roll Price:

For rolls 20m and above simply multiply m price (from table below) by length required.

For rolls 5m to 10m inclusive add £20 cutting charge to price.
For rolls 11m to 19m inclusive add £10 cutting charge to price.
Delivery for all rolls up to 50m is £10 (except Superthermic EvoAC). Our supplier strives to deliver orders received by 12.00pm next day but can't guarantee this during busy periods. For orders over £1500 delivery is free. All delivery is mainland only.
Film Properties Diffusion Frost Protection Light Transmission UV Transmission Anti Drip
Anti Fog
Sunmaster Diffused medium medium >89% yes yes
Sunmaster Clear low medium >90% yes yes
Sterilite Superthermic medium v high >90% no yes
Superthermic Evo AC medium v high >90% yes EvoAC
Smart Green medium medium >65% >60% yes
Sunmaster Crystal Therm very low high >92% no EvoAC
Green White none high 0 no no
Stockmaster White high high 30% <10% no
Side Vent Film medium medium >89% yes yes
Sunmaster Cool medium high >80% yes yes
Evo Twin Skin 360 low highest ~81% yes EvoAC
  4m 7.3m 8m 9m 9.2m 10m 11.1m 12m 14m
Sunmaster Diffused   £7.21     £8.99   £10.86   £13.72
Sunmaster Clear   £7.21     £8.99   £10.86   £13.72
Sterilite Superthermic   £8.59     £10.82   £13.03   £16.44
Sunmaster Superthermic EvoAC £5.46 £9.96 £10.93   £12.57   £15.15   £19.12
Smart Green         £8.85   £10.68   £13.47
Crystal Therm Super Clear     £9.65     £12.05   £14.46 £16.88
Green White (mushroom / poultry)               £15.12 £17.68
Stockmaster White         £8.90     £10.77 £13.53
Sunmaster Cool     £9.18     £11.47   £13.77 £16.06
Evo Twin Skin 360 £11.16   £22.32 £25.11
  3.4m 4.6m 8.5m 14m
Total Block Black (use under capillary matting)   £4.70 £8.68 £14.30
Thermaprop Prop Film White or Clear x 100m £69.35
  1.5m 2m 3m 4m
Side Vent Film   £2.32 £3.47
Side Vent Film with pocket   £3.49
Side Vent Netting / Mesh £1.92 £2.56
Woven 2x Coated Film   £2.99 £4.49 £5.99
  19mm 25mm 30mm 50mm 75mm 100mm 150mm 300mm
Anti Hot Spot Tape Silvatherm PVC free x 20m £3.46 £4.78 £5.49 £9.58
Polythene Repair Tape x 25m       £2.78 £4.14 £5.34 £8.89 £17.42
Anti Hot Spot Repair Tape x 50m       £2.87
Cutting Charges - Tunnel Sheets
5-10m = £20
11m to 19m inclusive = £10
20m and above = £0
Cutting Charges - Side Vent Materials
10-29m inclusive = £20
30m and above = £0
Delivery Charges
All rolls up to 50m = £10 (except EvoAC 11.1 and 14m)
EvoAC 11.1m = £10 up to 40m, ask for rolls > 40m
EvoAC 14m = £10 up to 30m, ask for rolls > 30m
